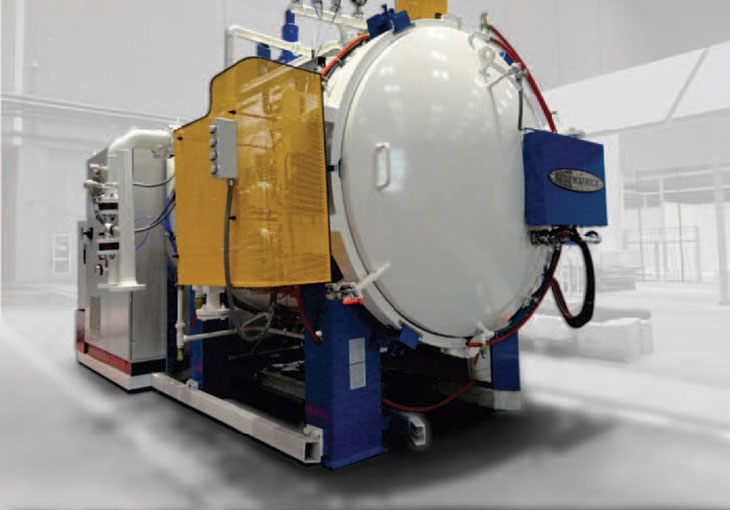

Compact C669 Vacuum Furnace with Gas Cooling System

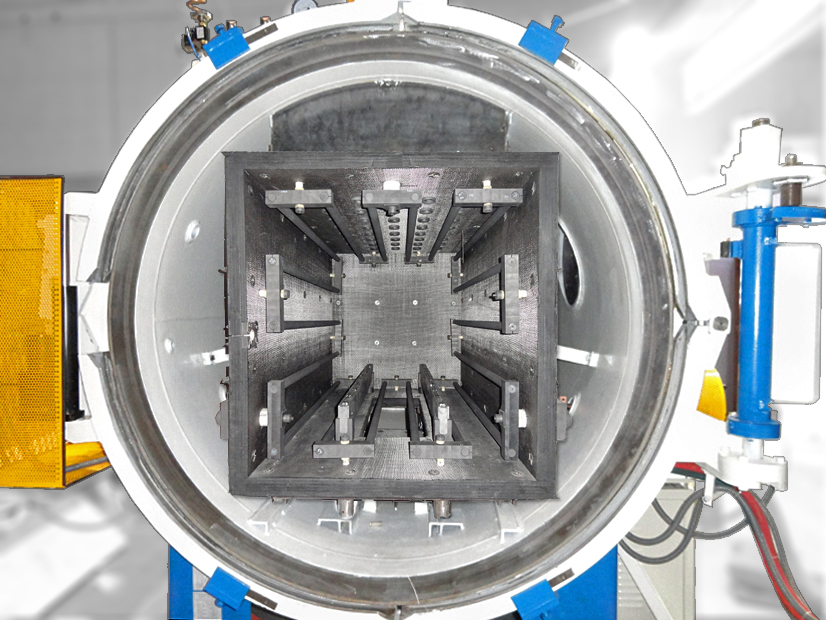

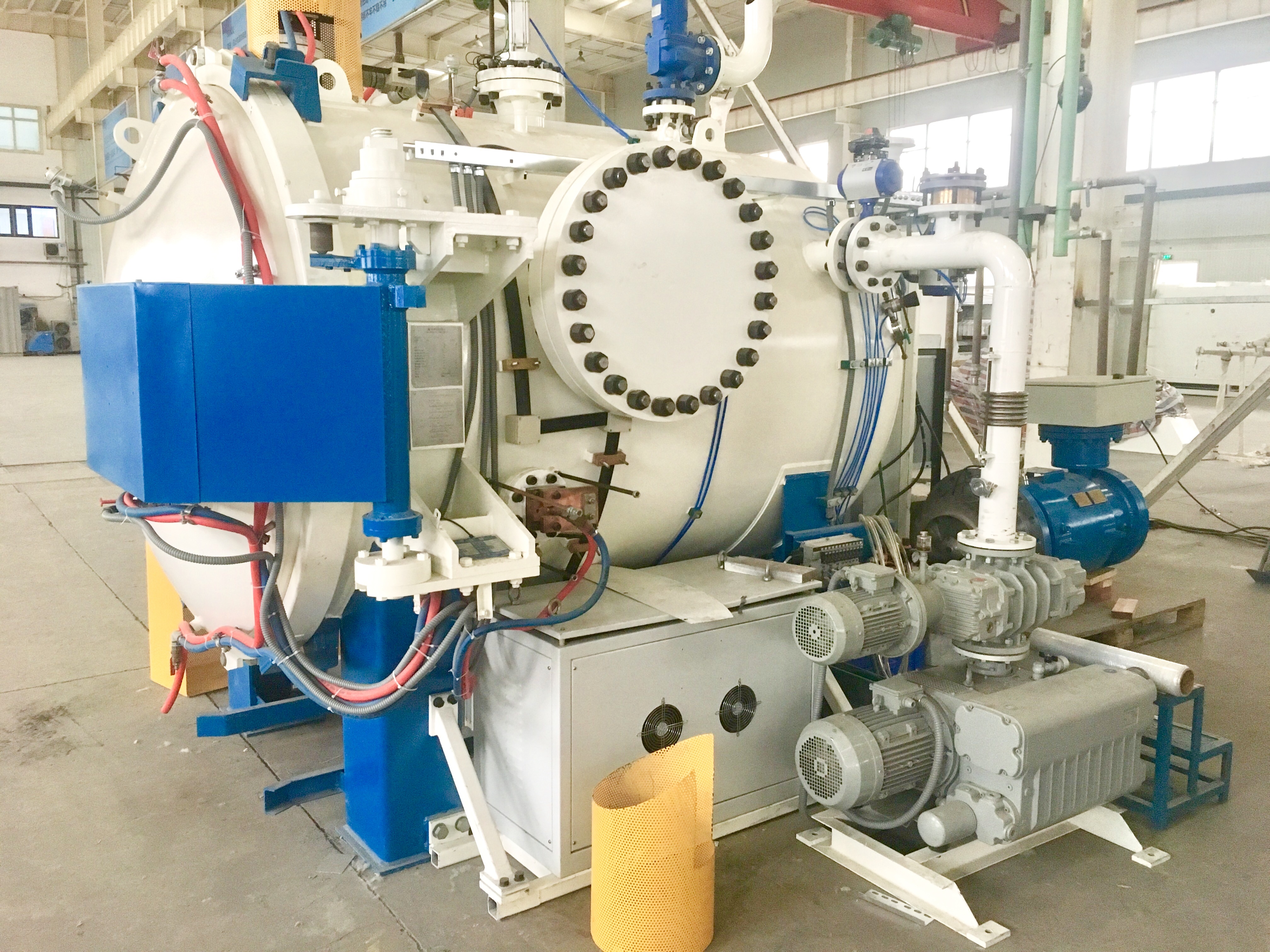

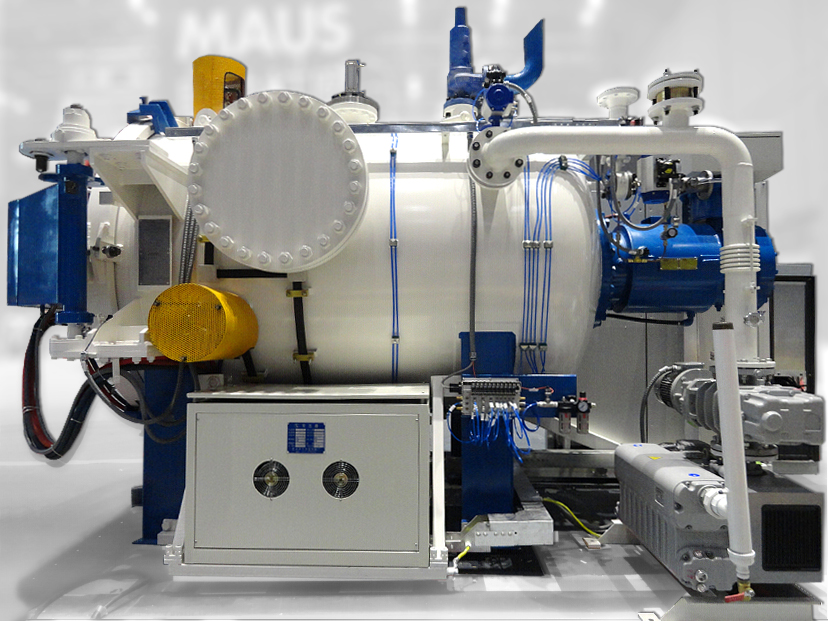

Durable graphite insulation and heating elements provide long, reliable service in this heavy-duty furnace designed for the industrial workplace. The pumping system, power supply and cooling systems are generously sized to enable a wide range of industrial heat treatment applications including quench hardening and tempering, degassing, annealing, etc. The cooling gas re-circulation system includes a multi-nozzle gas feed arrangement to optimize the uniformity and rate of cooling of the load during quenching.

The furnace is completely assembled, leak tested, and then dismantled as required for shipment. The system will be ready for operation after re-assembly, interconnection of subsystems and connection to power, water and atmosphere supply lines in the PURCHASER’s plant.

Benefits

• Pump down time to operational vacuum less than 15 min
• Temperature uniformity better then +/-6 C | +/-10 F
• Meets requirements of AMS 2750E class 2
• Efficient convection heating in lower temperatures
• Designed for hardening of tool and other steels in gas under pressure of 15 bar
• Perfect for hardening of slender elements
• Hardening and tempering in one cycle
• Process control with load thermocouples
• Meets requirements of NADCA, FORD and GM heat treatment specifications
• Controlled cooling, isoquench, interrupted quench, marquenching and austempering available
• Built-in simulator G-Quech Pro for hardening of tool steel
• Pre-installed package of recipes for selection heat treatment parameters depending on grade of steel and part geometry
• Smart control system enabling the reduction of the power consumption
• Motor supply circuit protected against spikes during startup phase

Processes

• Brazing
• Annealing
• Hardening
• Solution heat treating
• Sintering
• Tempering

Materials

• Tool steels
• HSLA
• Alloyed steels
• Stainless steels
• Alloys and super alloys
• Titanium and titanium alloy

Industries

• Aviation (NADCAP)
• Automotive
• Machine
• Tool
• Medical
• Nuclear
• Energy
• Electronic
• Metallurgy
• Commercial heat treatment canters
• Special

Options dedicated for the Compact Vacuum Furnaces

Single chamber, horizontal vacuum furnace with graphite rectangular hot zone and integrated, directional gas cooling. High pressure gas quench 15 bar with controlled and isothermal cooling (interrupted quench, austempering, martempering). Meets NADCA, FORD and GM requirements for dies heat treatment.

Options

• Dedicated auxiliary equipment
• Control system advantages
• 2 or 15 bar cooling gas pressure
• Partial pressure control
• Convection heating
• High vacuum

Dedicated auxiliary equipment

• Manual loader
• Electrical loader
• Casted metal fixture
• Carbon composite fixture
• Closed loop water cooling system
• Gas buffer tank
• Noise protection of the pumping system
• Inlet gas dew point measuring system
• Temperature uniformity frame
• Time-dependent spare parts set

Control system advantages

• 2 or 15 bar cooling gas pressure
• Partial pressure control
• Convection heating
• High vacuum
• Manual loader
• Electrical loader
• Casted metal fixture
• Carbon composite fixture
• Closed loop water cooling system
• Gas buffer tank
• Noise protection of the pumping system
• Inlet gas dew point measuring system
• Temperature uniformity frame
• Time-dependent spare parts set
• Fully automated furnace operation controlled by PLC
• Auto and semi-auto operational mode
• Intuitive window type operation panel
• Monitoring of process parameters
• Visualization and animation of furnaces operation
• Programming processes
• Recording of process parameters and events
• Batch reporting
• Alarming and warning locally and remotely
• Predefined process recipes database
• Energy optimization programming
• Simulation of quenching
• Preventive maintenance program and real time scheduling
• Remote communication, monitoring and control
• Connection to external network
• Data storage
